CarBit

A professional OBD2 engine diagnostics tool compatible with Wi-Fi/Bluetooth ELM327 adapters

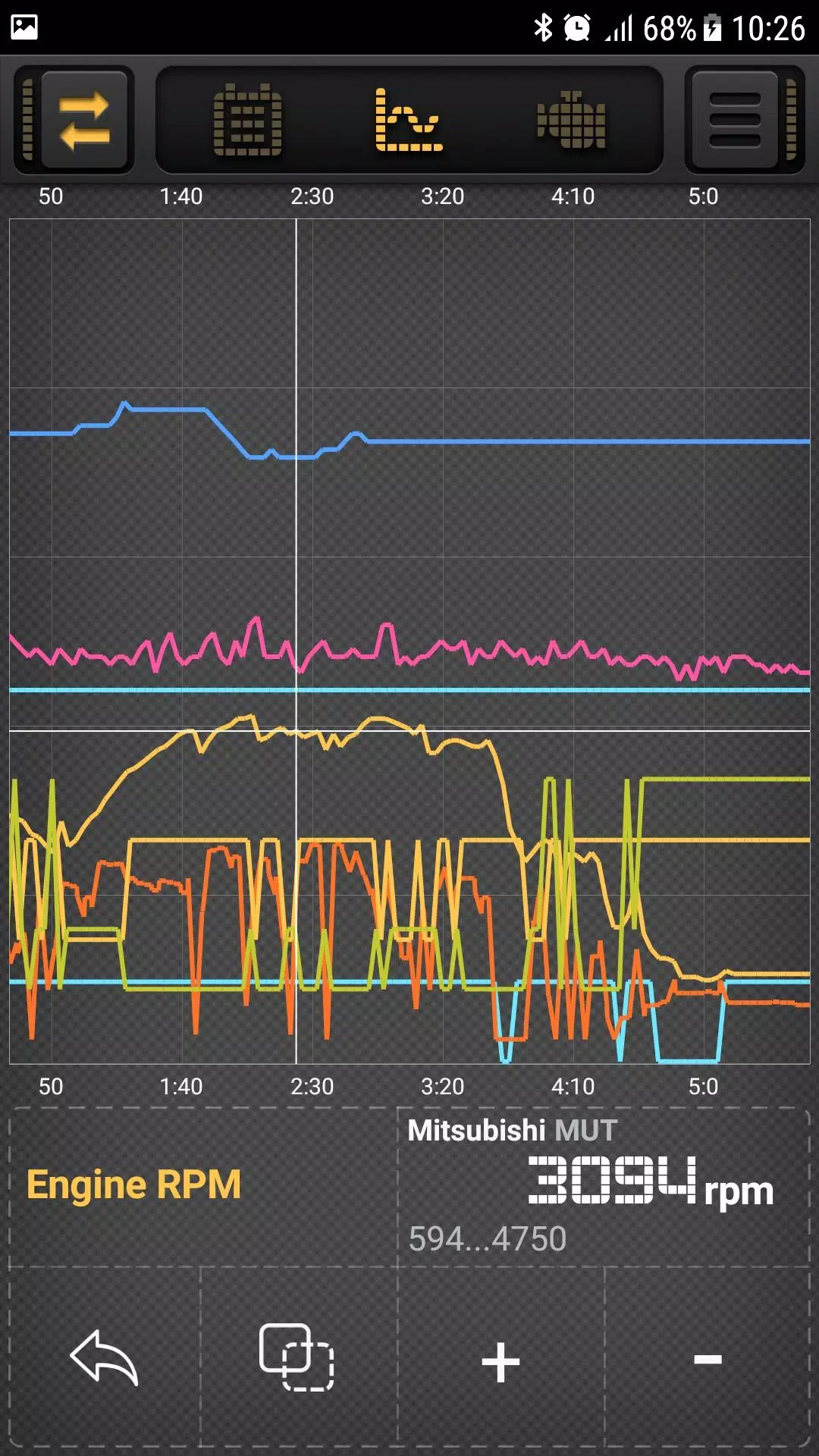

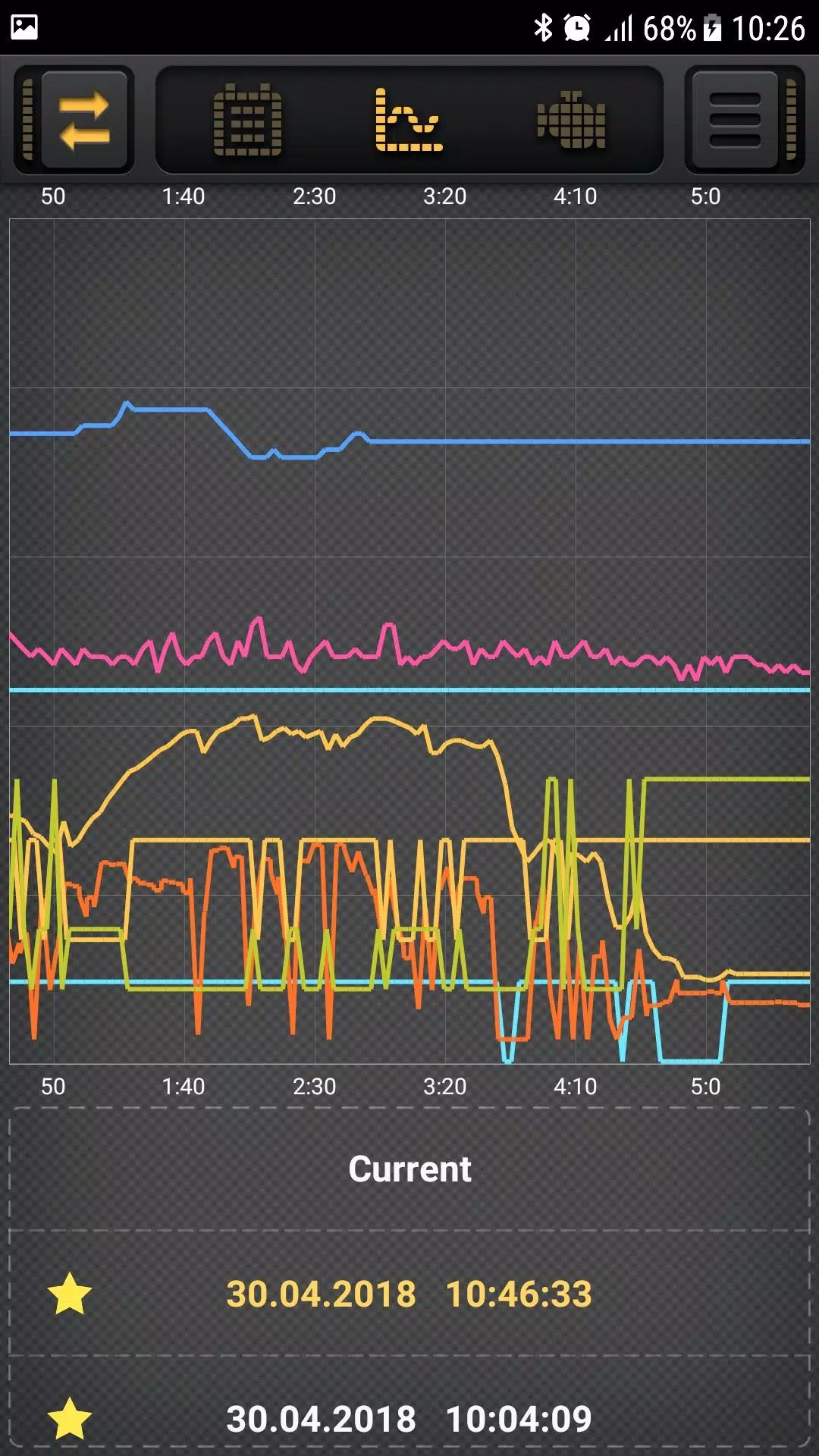

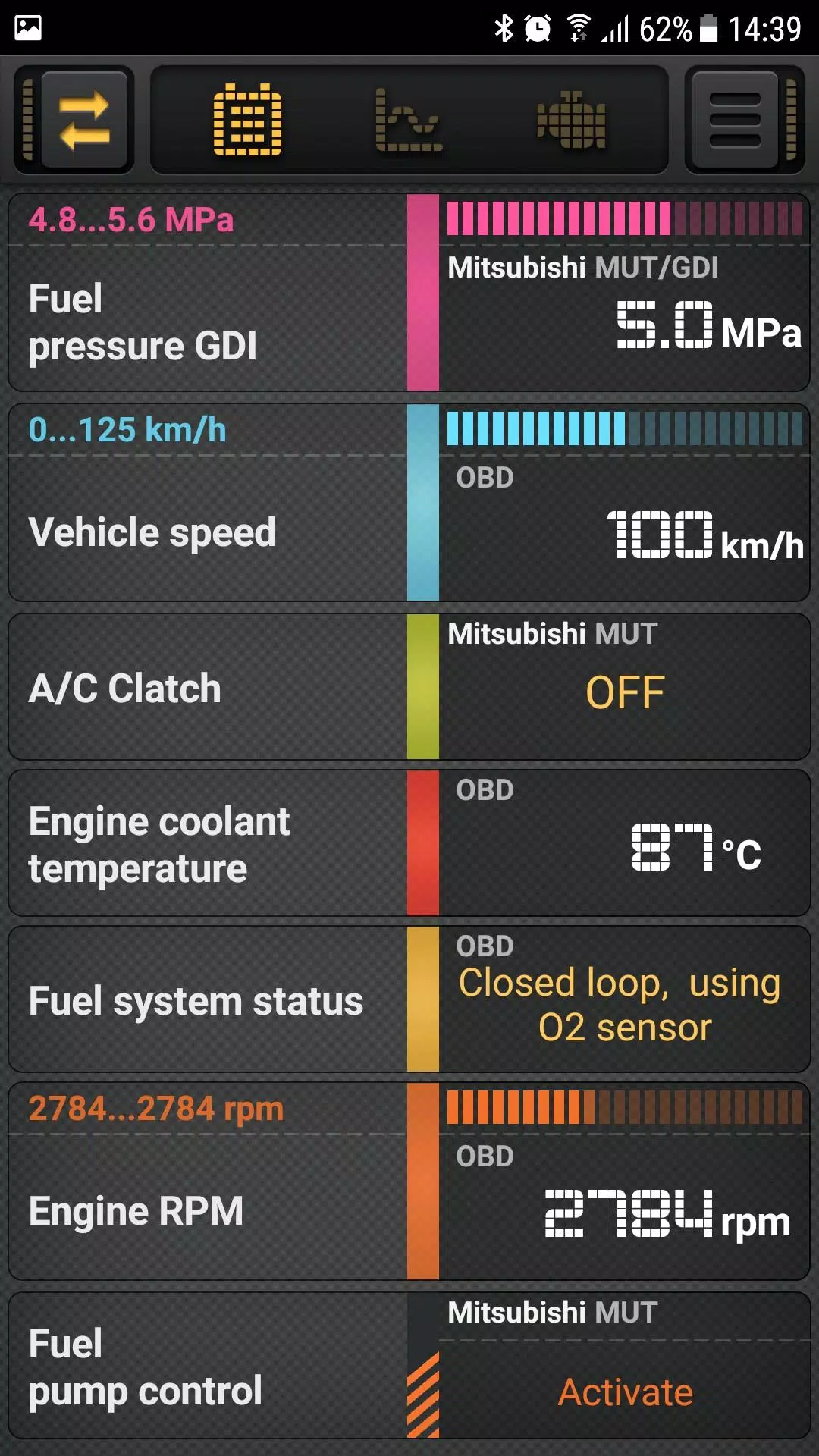

This car diagnostic app reads data from vehicle ECUs using ELM327 OBDII adapters, displays real-time sensor graphs with logging capabilities, and diagnoses/clears engine fault codes (DTCs).

Customizable sensor/PID thresholds with visual/sound alarms when values exceed set limits.

Works with both Bluetooth and Wi-Fi versions of ELM327 OBD adapters.

For optimal performance, use adapters version 1.5 to 2.1 (later versions may have compatibility issues).

Important Notice:

The ELM327 only works with OBD2-compliant vehicles:

• US models manufactured after 1996

• European gasoline cars after 2001 / diesel after 2003

• Japanese vehicles after 2000

Supports manufacturer-specific parameters beyond standard OBDII for:

Select models from these brands:

BMW - (DIESEL, E91+AT)

BYD - (MT20U, ABS)

Chery - (MT20U, MT20U2, ActecoME797)

Chrysler/Dodge - (DIESEL, AT)

Citroen - (C4, C5, Sagem2000, CAN/AT6, EDC16C3 , MEV17.4.2)

Daewoo - (SiriusD42)

Fiat - (IAW49F, IAW5SF)

Ford - (ECU, PWM/AT, PWM/ABS, CAN/DIESEL, CAN/AT, CAN/TPMS, CAN/ABS )

Geely - (MT20U, MT20U2, M797)

GM/Chevrolet/Pontiac - (ECU, AT, ABS, SiriusD42)

GreatWall - (MT20U2, EOBD, CAN/4D20)

Honda - (Fit, Accord, CRV/DIESEL, Insight)

Jeep - (ECU, DIESEL, AT, TPMS)

KIA, Hyundai -~15 PIDs for each model(ATF Temperature,

Knock detected and etc)

Land Rover - (RANGE/3.6L, DISC4/3.0L, DISC3/TD6, FL2/TD4)

Lifan - (MT20U, MT20U2, ActecoME797, ME1788, ABS)

Mazda - (ECU, AT, ABS, CAN/TPMS, CAN/SWA)

Mercedes - (W203/CDI, W169/CVT, W168)

Mitsubishi - (CAN/ECU, CAN/CVT, CAN/SS4II, CAN/AWC, MUT/OBD, MUT/GDI)

(Mitsubishi models before ~2000 don't support OBD2 protocol)

Nissan - (CAN/ECU, CAN/CVT, CAN/AWD, CAN/METER, CONSULT2)

Opel - (ECU, AT, ABS, X18XE, Z16XE, Y17DT, CDTI1.6L, CDTI1.3L)

Peugeot - (MEV17.4.2, EDC16C3, ME744, AL4/CAN, AL4/KWP)

Renault - (CAN/ECU, CAN/DIESEL, KWP/DIESEL, Sagem2000, KWP/EMS3132)

Skoda - (CAN UDS TSI/TFSI)

SsangYong - (KWP/ECU, KWP/AT5, D20DT, CAN/D20DTF, CAN/DSI6)

Subaru - (ECU, ECU/DIESEL, SSM2, SSM2/DIESEL, SSM2/AT, KWP/ABS)

Suzuki - (CAN/ECU, KWP/ECU)

Toyota - (CAN/ECU, KWP/ECU, Prius10,Prius20,Prius30/Alpha,Prius30/AC)

VAG - (TDI/2.5L, CAN UDS TSI/TFSI)

Volvo - (D5/P3)

VAZ - (Yanvar 7.2, Itelma VS5.1 R83, Itelma M73, Itelma M74

KWP/CAN, AT/JATCO, AMT/ZF, Vesta/Largus K4M,H4M)

GAZ - (MIKAS10.3/11.3, MIKAS11/E2)

ZAZ - (MIKAS10.3/11.3, MR140)

UAZ - (MIKAS10.3/11.3, MIKAS11/E2, M86CAN)

Supported parameters are regularly updated...

Note: Not all listed PIDs may be available for your specific vehicle. Filter supported PID types in Settings.

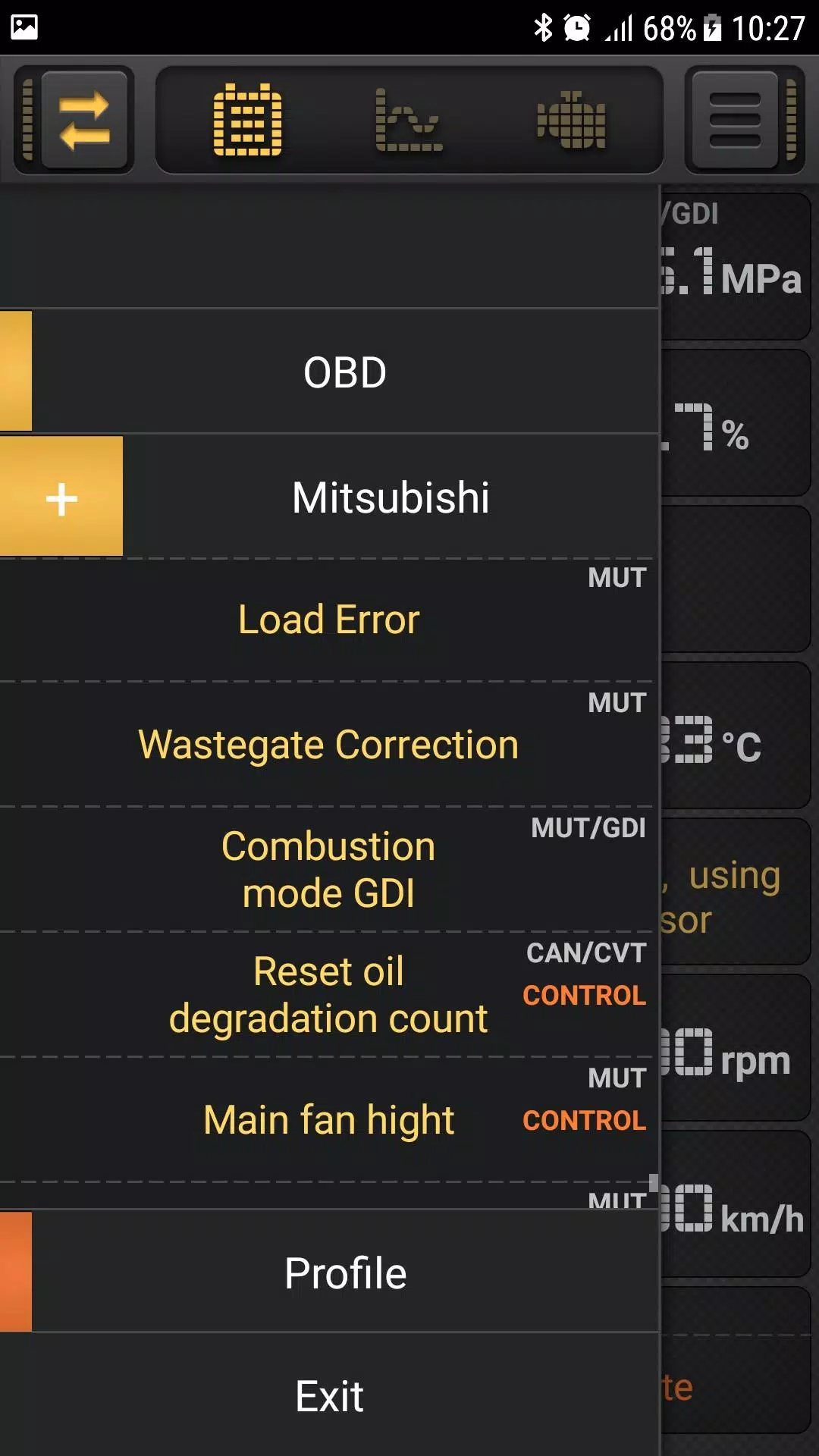

Advanced control features available for select Mitsubishi models (activating cooling fans, fuel pumps, etc.)

For reading MUT parameters on Mitsubishi CAN vehicles (Montero/Pajero IV, Outlander 2, etc.), create a profile using ISO 9141-2 protocol while maintaining ISO 15765-4 CAN (11bit 500K) for other parameters.

Some Mitsubishi CAN models don't support ISO 9141-2 protocol.

Extensive customization options for creating custom parameters.

What's New in Version 3.5.9

Last updated on Sep 30, 2024

Performance optimizations and stability improvements. Update now for the best experience!
